# Log-scale transfer function estimates

## Description

The LTPDA method ao/ltfe estimates the transfer function of time-series signals, included in the input aos following the LPSD algorithm [1]. Spectral density estimates are not evaluated at frequencies which are linear multiples of the minimum frequency resolution 1/T, where T is the window lenght, but on a logarithmic scale. The algorithm takes care of calculating the frequencies at which to evaluate the spectral estimate, aiming at minimizing the uncertainty in the estimate itself, and to recalculate a suitable window length for each frequency bin.

Data are windowed prior to the estimation of the spectrum, by multiplying it with a spectral window object, and can be detrended by polinomial of time in order to reduce the impact of the border discontinuities. Detrending is performed on each individual window. The user can choose the quantity being given in output among ASD (amplitude spectral density), PSD (power spectral density), AS (amplitude spectrum), and PS (power spectrum).

## Syntax

```        b = ltfe(a1,a2,pl)
```

a1 and a2 are the 2 aos containing the input time series to be evaluated, b is the output object and pl is an optional parameter list.

## Parameters

The parameter list pl includes the following parameters:

• 'Kdes' - desired number of averages [default: 100]
• 'Jdes' - number of spectral frequencies to compute [default: 1000]
• 'Lmin' - minimum segment length [default: 0]
• 'Win' - the window to be applied to the data to remove the discontinuities at edges of segments. [default: taken from user prefs].
The window is described by a string with its name and, only in the case of Kaiser window, the additional parameter 'psll'.
For instance: plist('Win', 'Kaiser', 'psll', 200).
• 'Olap' - segment percent overlap [default: -1, (taken from window function)]
• 'Order' - order of segment detrending
• -1 - no detrending
• 0 - subtract mean [default]
• 1 - subtract linear fit
• N - subtract fit of polynomial, order N
The length of the window is set by the value of the parameter 'Nfft', so that the window is actually rebuilt using only the key features of the window, i.e. the name and, for Kaiser windows, the PSLL.

 If the user doesn't specify the value of a given parameter, the default value is used.

The function makes logaritmic frequencyscale transfer functions estimates between the 2 input aos, and the output will contain the transfer function estimate from the first ao to the second.

## Algorithm

The algorithm is implemented according to [1]. The sample variance is computed according to:

where

is the coherence function. In the LPSD algorithm, the first frequencies bins are usually computed using a single segment containing all the data. For these bins, the standard deviation of the mean is set to Inf.

## Example

Evaluation of the transfer function between two time-series represented by: a low frequency sinewave signal superimposed to white noise, and a low frequency sinewave signal at the same frequency, phase shifted and with different amplitude, superimposed to white noise.

```        % Parameters
nsecs = 1000;
fs  = 10;
nfft = 1000;

% Create input AOs
x = ao(plist('waveform','sine wave','f',0.1,'A',1,'nsecs',nsecs,'fs',fs)) + ...
ao(plist('waveform','noise','type','normal','nsecs',nsecs,'fs',fs));
x.setYunits('m');
y = ao(plist('waveform','sine wave','f',0.1,'A',2,'nsecs',nsecs,'fs',fs,'phi',90)) + ...
4*ao(plist('waveform','noise','type','normal','nsecs',nsecs,'fs',fs));
y.setYunits('V');

% Compute transfer function

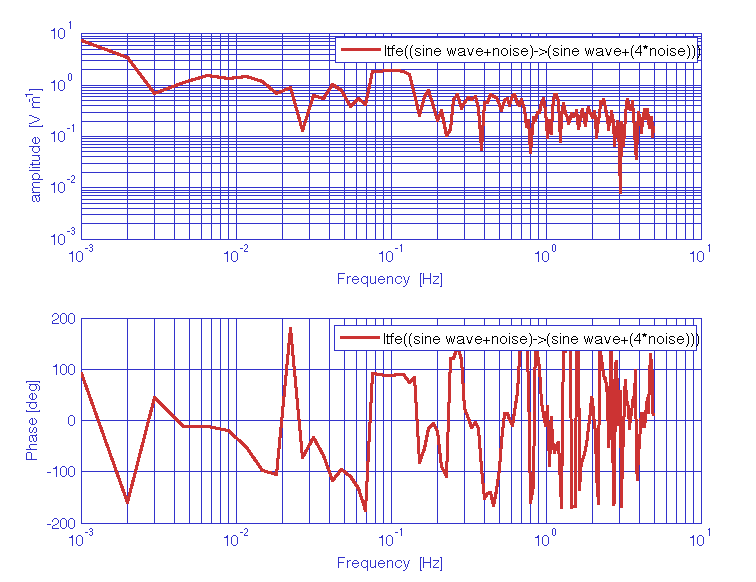

Txy = ltfe(x,y,plist('win',specwin('Kaiser',1,200),'nfft',nfft));

% Plot
iplot(Txy);
```

## References

1. M. Troebs, G. Heinzel, Improved spectrum estimation from digitized time series on a logarithmic frequency axis, Measurement, Vol. 39 (2006), pp. 120 - 129. See also the Corrigendum.
