Version 2.5.5 LTPDA Toolbox Software


This table summarizes what's new in Version 2.5.5:

New Features and Changes Version Compatibility Considerations Fixed Bugs and Known Problems Related Documentation at Web Site
Yes
Details below
Yes — Details labeled as Deprecated and removed features in descriptions of changes, below. Bug Reports at Web site Printable Release Notes: PDF

Introduction

This version of LTPDA is 2.5.5. This document lists the changes since V2.5.4.

This version requires MATLAB 2010a or above.

Main Changes

This version of LTPDA includes a vast number of improvements and bug fixes. In addition, the following significant changes are included in this release.

Parameter lists

Default plist values are applied in all methods now and a check is done whether or not the user input keys are supported by the algorithm. You can choose the action that results if a input key is not found in the default plist (choose from ‘None’, ‘Warning’, or ‘Error’) in the LTPDA preferences (LTPDAprefs).

Parameters in parameter lists now support multiple key names. This allows us to change the names of parameter keys while remaining backwards compatible with existing scripts.

Plotting

A new way of plotting has been introduced into LTPDA which leverages the figure, axes and line handles of MATLAB. You can set up your default line styles in the LTPDA preferences GUI now. One structural change here is that the ‘plotinfo’ property of a user object is no longer a plist, but is now a plotinfo object. More details are included below in the section Plotting in LTPDA - the new way.

Improved model documentation for SSM models

For models which support it, the model overview generated when clicking the ‘Model Information’ documentation link will contain lists of inputs, states, outputs and parameters.

Other Changes

New Methods

AO Static Constant Constructors

A number of static constructors for the ao class have been added to LTPDA. To create an ao with the value of the speed of light, for example, do

>> ao.c
----------- ao 01: C -----------

       name: C
       data: 299792458
             -------- cdata 01 ------------
                  y:  [1x1], double
                 dy:  [0x0], double
             yunits:  [m s^(-1)]
             ------------------------------

       hist: ao / ao / 976fad6449ed51fd421ad39004d225dd468e2ede
description: Speed of light in vacuum
       UUID: 83da778e-b004-46cb-8690-52381120a429
--------------------------------

Key Default Value
c convenient constructor of an AO containing the value of the speed of light in vacuum
G convenient constructor of an AO containing the value of the universal constant of gravitation
R convenient constructor of an AO containing the value of the gas constant
e convenient constructor of an AO containing the value of the elementary charge
epsilon0 convenient constructor of an AO containing the value of the vacuum permittivity
h convenient constructor of an AO containing the value of the Planck constant
kB convenient constructor of an AO containing the value of the Boltzmann's constant
mu0 convenient constructor of an AO containing the value of the vacuum permeability

Deprecated and removed features

The following methods and features have been deprecated:

None

The following methods and features have been removed:

MANTIS Issues

For detailed information please visit the webpage: Mantis Bug Tracker

Issue # Status Description
568resolvedCan save a filter that does not load with miir('<filename>')
572resolvedao/detrend doesn't recognise parameter 'N'
590resolvedWhy does the whitened data have using m / sqrt(Hz) ?
594newSplit for xydata
593newscale to SI prefix
592closedao.iplot changes needed
588closedMethod to retrieve objects for pipeline
580resolvedWe need a method to 'tune' the length of timeseries objects
579resolvedAn ao.toSI method is needed
578assignedmatrix and collection should subclass ltpda_container
577resolvedLTPDA Preferences: an option to choose error/warning for plist keys/values
576resolvedLTPDA Plotting Preferences: 'Markersize' within plot styles
575assignedconsolidate function terminates with an error message
574assignedao from pzmodel doesn't respect the original output units

Plotting in LTPDA - the new way

Introduction

This document, and the work behind it, is in response to various user requests to have a more powerful way of plotting data. Generally, iplot is fine, but it covers only, let’s say, 70% of use cases. In the past, if you wanted to do anything more powerful you had to drop back down to basic MATLAB figure/plot construction. While that is possible, it’s quite painful to extract all the information from LTPDA objects and get it all on the plot the way you want. So now there’s a new way, and that is the subject of this document.

Once this new way of plotting settles down and solidifies, we can write a new section of the user manual to capture the contents of this document.

Plot Styles

The first new feature is the ability to define yourself the default plot colors and styles that will be used. This is done under the LTPDA preferences panel (LTPDAprefs). On the tab entitled “Plot Styles” you can now specify a list of styles that will be used, in order, if no other information is provided. You can also import and export these styles (to an XML file). That even allows you to edit this list by hand (which may be easier). If you choose to do that, you should be aware that the color is specified in the RGB format of java - a single negative number. To determine a number for your favourite color, you can do the following:

% Translate a MATLAB color to a Java color
c1 = utils.prog.mcolor2jcolor([0.565 0.247 0.667]);
c2 = utils.prog.mcolor2jcolor('r');
% Determine the RGB value
v1 = c1.getRGB()
v2 = c2.getRGB()

Plot information

In previous times, the ‘plotinfo’ field of all ltpda_uoh objects was intended to contain a plist which could set values for how the object/data would be presented on plots. For example, you could set values for things like ‘color’, ‘linestyle’, and ‘linewidth’. These values would be read by iplot and used when creating a plot.

Now, in the current CVS version of LTPDA, the plotinfo field is always a plotinfo object - a new class of object which encapsulates these various display properties. The following table lists and describes the properties:

plotinfo
Property Description
style Contains a (java) line-style object. See table below.
includeInLegend A flag to indicate whether or not the owning object should be included in the legend when plotted.
showErrors A flag to indicate whether or not the errors (should they exist) of the owning object should be plotted as errorbars on the plot.
figure A handle to the figure on which the owning object should be plotted.
axes A handle (or handles) on which the owning object should be plotted.

plot style [mpipeline.ltpdapreferences.PlotStyle]
Property Description
linestyle One of the valid linestyles (see utils.plottools.allowedLinestyles)
linewidth The linewidth to use when plotting the data contained in the object which owns the plotinfo object.
color A valid MATLAB color.
marker A valid MATLAB marker (see utils.plottools.allowedMarkers)

Creating a plotinfo object (should you wish to) can be done in the following ways:

p = plotinfo(); % creates a plotinfo with the next default style
p = plotinfo(2); % creates a plotinfo with the 2nd style defined in the prefs
p = plotinfo(pl) % creates a plotinfo from a plist
p = plotinfo(linestyle, linewidth, color, marker); % create with these properties
p = plotinfo(linestyle, linewidth, color, marker, ...
includeInLegend, showErrors, axes, figure);

Normally, creating a plotinfo object is not necessary. Instead, if you have an LTPDA user object (for example, an AO) you can use convenient methods to set properties. When using the following methods, if the object doesn’t already have a defined plotinfo object, then one is created.

Methods for setting plotinfo fifields
Method Description
setPlotLineStyle Set the line style of the plotinfo.
setPlotLinewidth Set the linewidth of the plotinfo.
setPlotColor Set the color of the plotinfo.
setPlotMarker Set the marker of the plotinfo.
setShowsErrors Set the showErrors flag.
setPlottingStyle Set one of the defined plotting styles.
setPlotAxes Set the axes of the plotinfo.
setPlotFigure Set the figure of the plotinfo.

Examples of how to use plotinfo objects and these associated methods will be presented in the following sections.

Plotting AOs

Plot a single AO

Given a single AO, you can tell it to plot itself by doing the following:

% build an AO
a = ao.randn(10,10);
% plot it on a new set of axes on a new figure using the next default plot style
a.plot

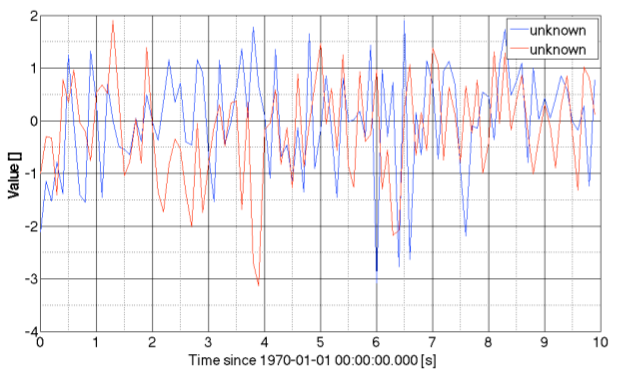

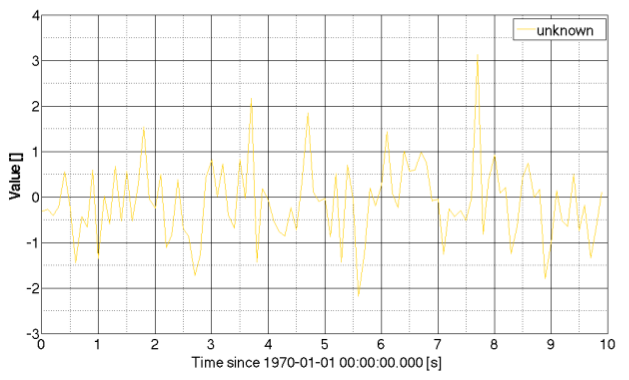

This will produce a plot like the following:

Plot

Note that if you plot the object again, the next defined plot style will be used. If you want to use the same style again, you have to set the plot style to a defined state before plotting, either by resetting the internal counter (plotinfo.resetStyles()) before plotting, or by setting the style before plotting (using, for example, a.setPlottingStyle(1)).

Plot an AO with a particular style

You can plot an AO with one of you defined styles by doing the following:

% build an AO
a = ao.randn(10,10);
a.setPlottingStyle(4);
% plot it on a new set of axes on a new figure using the next default plot style
a.plot

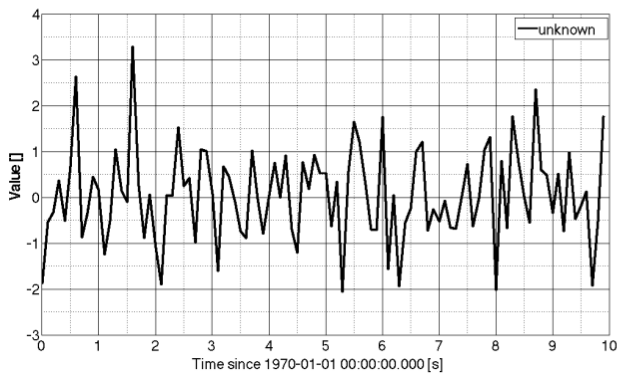

Plot

Alternatively, you can specify simply the color, or any of the other properties:

% build an AO
a = ao(1:10);
a.setPlotColor('m');
a.setPlotLineStyle('--');
% plot it on a new set of axes on a new figure using the next default plot style
a.plot

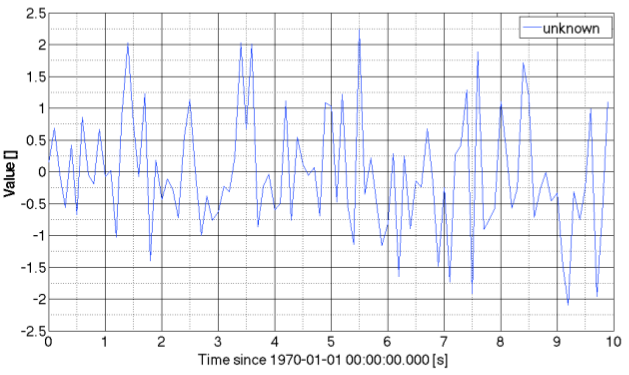

Plot

You can, if you so wish, build a plotinfo object and use it:

% build an AO
a = ao.randn(10,10);
pi = plotinfo('-', 3, 'k', 'none');
a.setPlotinfo(pi);
% plot it on a new set of axes on a new figure using the next default plot style
a.plot

Plot

Plotting multiple AOs on the sample axes

By default, if you tell ao/plot to plot multiple objects, it will try to plot them on the same set of axes. Here’s an example of this:

% build two AOs
a = ao(1:10);
b = ao(2:12);
% Set their colors
a.setPlotColor('m');
b.setPlotColor([0.3 0.5 0.24]);
% Plot them together
plot(a,b)

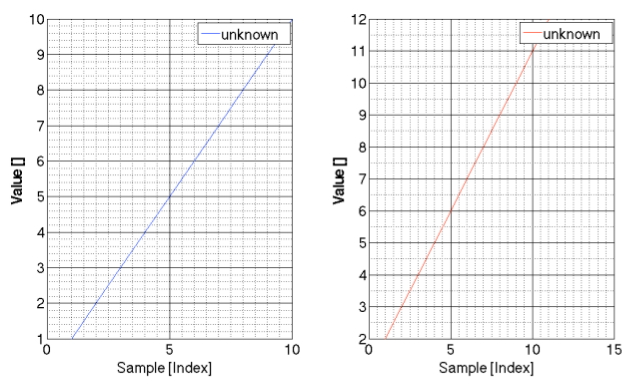

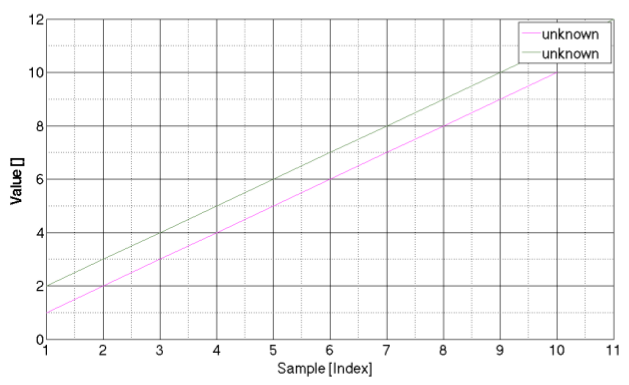

This will produce a plot like this:

Plot

You can also chain together plotting events. Suppose you plot an object then later wish to plot an object on the same axes, you can do:

% reset the plotting styles counter
plotinfo.resetStyles();
% build two AOs with particular start times
a = ao.randn(10,10);
a.setName();
a.setT0('2012-04-04 12:00:00')
a.setToffset(5)
b = ao.randn(10,10);
b.setName();
b.setT0('2012-04-04 12:00:20')
% Plot them together, and get the objects back with their plotinfo fields filled
[a, b] = plot(a,b)
% Create a third object
c = ao.randn(15,10);
c.setName;
c.setT0('2012-04-04 12:00:10')
% Set the plot axes for this object to be the same as for the first object we plotted
c.setPlotAxes(a.plotinfo.axes);
% Plot the third object
c.plot

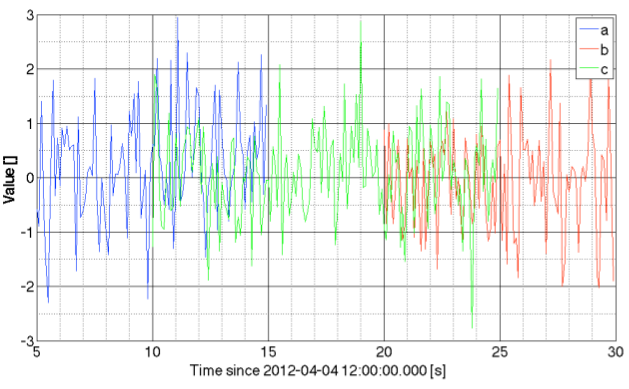

This will yield a plot like this:

Plot

The key here is that you tell the object ‘c’ where it should plot itself (on which axes).

Plotting multiple AOs on subplots

As stated above, the default is to plot multiple objects on the same set of axes. Suppose you want to plot objects on subplots. Then you first create the subplot axes and tell each object where it should plot itself. Here’s an example:

% Reset the plot styles counter
plotinfo.resetStyles();
% Create two AOs
a = ao(1:10);
b = ao(2:12);
% Make a new figure with two subplots
figure
ah(1) = subplot(121);
ah(2) = subplot(122);
% Tell each AO on which subplot axes it should plot itself
a.setPlotAxes(ah(1));
b.setPlotAxes(ah(2));
% Plot the objects
plot(a,b)

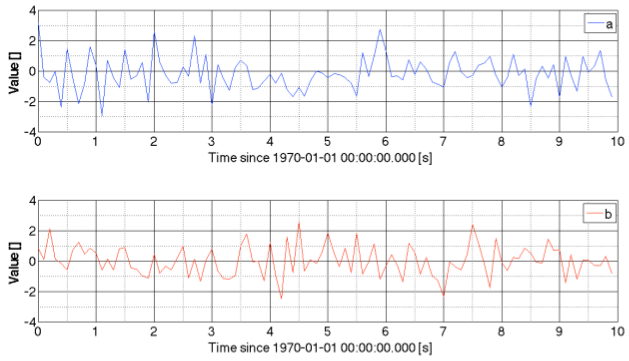

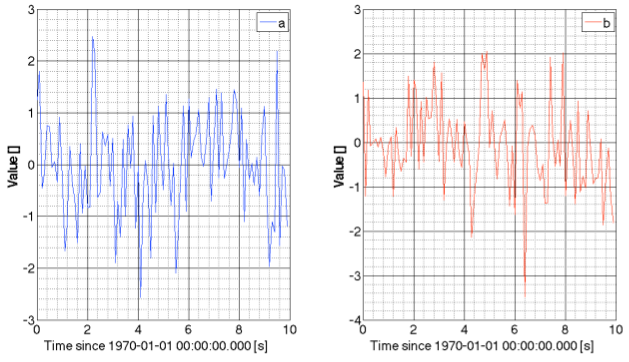

This should yield a plot like this:

Plot

Plotting complex valued AOs

If the AO you wish to plot has complex values, the default is to plot the absolute value of the data. If you provide two axes handles, however, then the real and imaginary (for cdata or xydata) or absolute value and phase (for fsdata) will be plotted. Here’s an example:

% Reset the plot styles counter
plotinfo.resetStyles();
% Create a complex valued cdata AO
a = ao(complex(1:10, 1:10));
% plot magnitude
a.plot
% plot real and imag
figure
ah(1) = subplot(211);
ah(2) = subplot(212);
a.setPlotAxes(ah);
a.plot

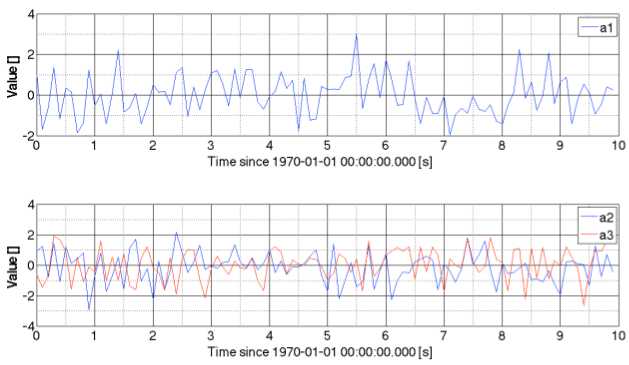

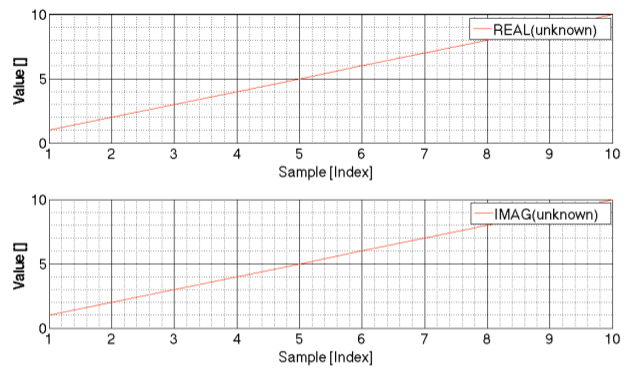

This will produce two plots like this:

PlotPlot

Here’s an example of a complex valued fsdata AO:

% Reset the plot styles counter
plotinfo.resetStyles();
% Create a complex valued fsdata AO
a = ao.randn(1000,10);
f = miir(plist('type', 'lowpass', 'fc', 1, 'fs', 10));
af = a.filter(f);
out = af + 0.1 * ao.randn(1000,10);
T = tfe(a, out, plist('navs', 4));
% Create two subplots
figure
ah(1) = subplot(211);
ah(2) = subplot(212);
% Set the axes
T.setPlotAxes(ah)
% Plot the transfer function
T.plot

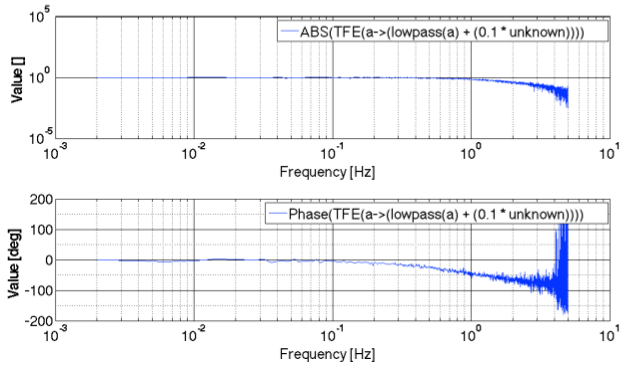

This gives a plot like this:

Plot

Here’s an example of a complex valued fsdata AO:

Plotting other kinds of objects

In order to plot objects other than AOs, there needs to be a plot method defined. So far we have a plot method for all subclasses of ltpda_tf (pzmodel, mfir, miir, rational, parfrac). So you can now do:

% Reset the plot styles counter
plotinfo.resetStyles();
% Create a pzmodel
p = pzmodel(1, 1, 100);
% Plot mag and phase
figure
ah(1) = subplot(121);
ah(2) = subplot(122);
p.setPlotAxes(ah);
p.plot

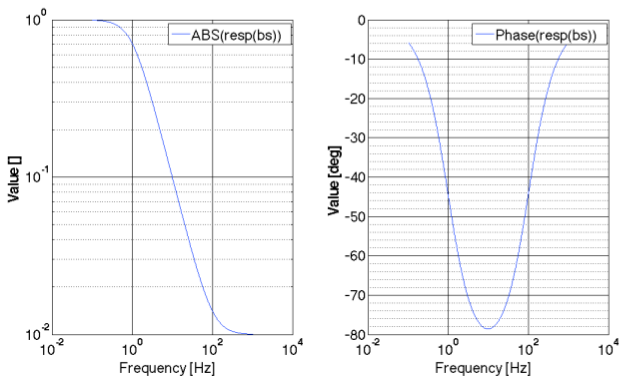

Which yields:

Plot

Creating more complex plots

Now that you can specify the axes on which objects should appear, you can do very complex plots. Here’s an example where the axes are set out and then populated.

% Reset the plot styles counter
plotinfo.resetStyles();
% Create two AO time-series
a1 = ao.randn(100, 10);
a1.setName();
a2 = ao.randn(100, 10);
a2.setName();
% compute PSDs
[S_a1, S_a2] = psd(a1, a2);
% make figure
figure
topLeft = subplot('Position', [0.1 0.6 0.35 0.35]);
topRight = subplot('Position', [0.55 0.6 0.35 0.35]);
bottom = subplot('Position', [0.1 0.12 0.8 0.35]);
% set axes
a1.setPlotAxes(topLeft);
a2.setPlotAxes(topRight);
S_a1.setPlotAxes(bottom);
S_a2.setPlotAxes(bottom);
% plot objects
plot(a1, a2, S_a1, S_a2)

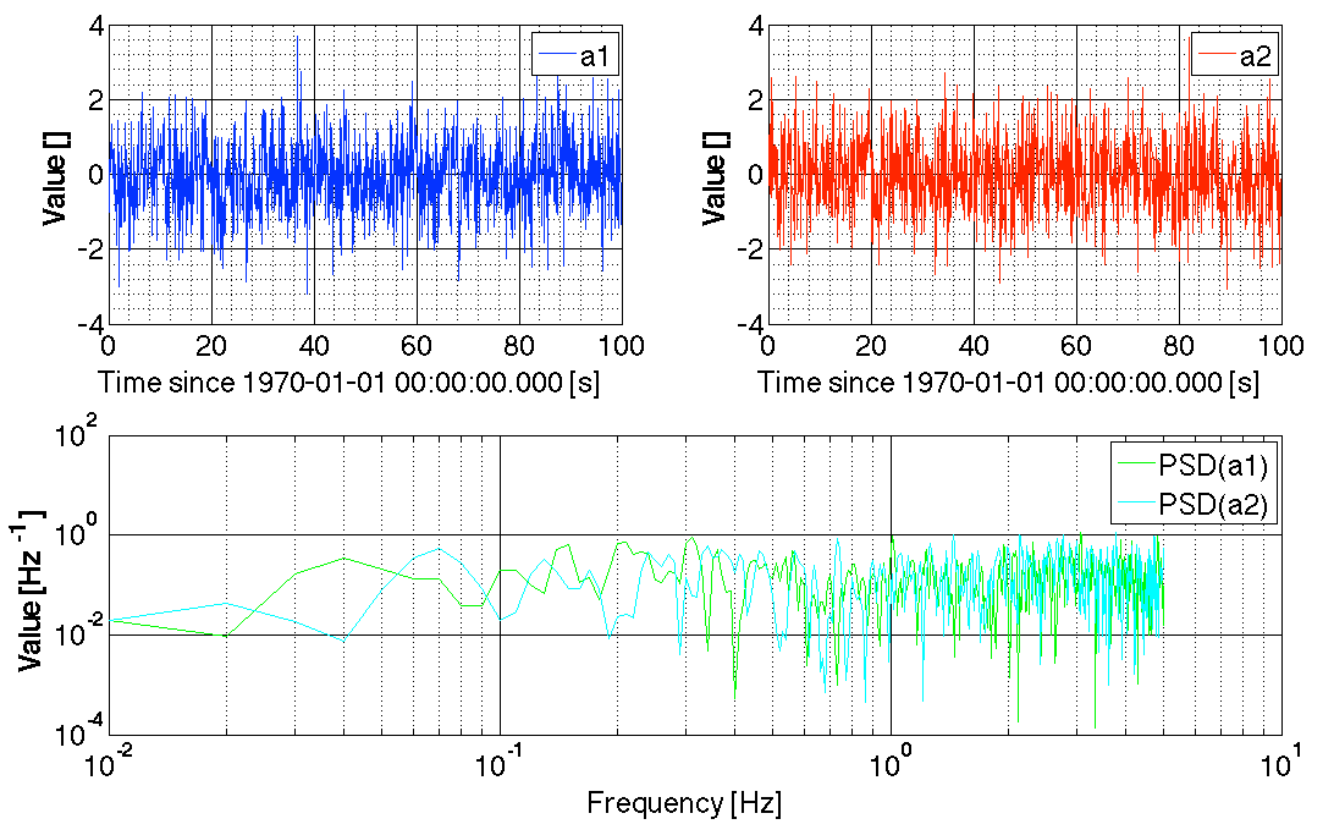

This will produce a figure like this:

Plot

Plotting Collections

A plot method is defined on the collection class. The way it works is to try to plot all objects in the collection on the same set of axes. If the collection object has no plotinfo, or if no axes are defined in the plotinfo, then a new set of axes are created on a new figure. If the collection does have a defined set of axes in its plotinfo, then all objects are plotted on that set of axes. This works by setting the axes to each object in the collection, then telling the object to plot itself. This relies on there being a defined plot method for each class of object in the collection.

Here’s an example of plotting a collection containing two AOs on a single set of axes:

% Reset the plot styles counter
plotinfo.resetStyles();
% Create two AO time-series
a = ao.randn(10,10);
b = ao.randn(10,10);
% Create a collection containing these AOs
c = collection(a, b);
% Plot the collection
c.plot

This should produce the following figure:

Plot

You can also plot collections on subplots:

% Reset the plot styles counter
plotinfo.resetStyles();
% Create 4 AOs
a = ao.randn(10,10);
b = ao.randn(10,10);
c = ao.randn(10,10);
d = ao.randn(10,10);
% Collect them into 2 collections
c1 = collection(a, b);
c2 = collection(c, d);
% Create two subplots
figure
ah(1) = subplot(211);
ah(2) = subplot(212);
% Set the collection axes
c1.setPlotAxes(ah(1));
c2.setPlotAxes(ah(2));
% Plot the collections
plot(c1, c2)

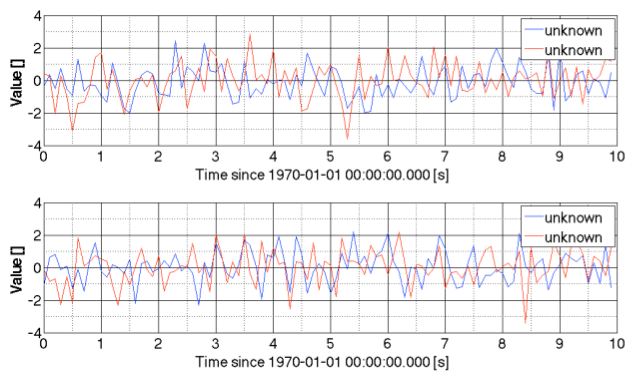

This will give a plot like this:

Plot

Plotting Matrix Objects

In order to create complex arrays of subplots, you can use matrix objects. The matrix class has a plot method defined on it, allowing you to layout your objects in any way you wish.

Plotting a 2x1 matrix

Here is an example of plotting two AOs side-by-side using a matrix object:

% Create two AOs
a = ao.randn(10,10);
b = ao.randn(10,10);
a.setName;
b.setName;
% Collect them into a matrix
m = matrix(a, b)
% Plot the matrix
m.plot

This will produce a figure like this:

Plot

If you want the plots the other way around, you can just make a matrix of a different shape:

% Create two AOs
a = ao.randn(10,10);
b = ao.randn(10,10);
a.setName;
b.setName;
% Collect them into a matrix
m = matrix([a; b])
% Plot the matrix
m.plot

Producing a plot like this:

Plot

Plotting a 2x2 matrix
% Create two AOs
a1 = ao.randn(10,10);
a1.setName;
a2 = ao.randn(10,10);
a2.setName;
a3 = ao.randn(10,10);
a3.setName;
a4 = ao.randn(10,10);
a4.setName;
% create a 2x2 matrix

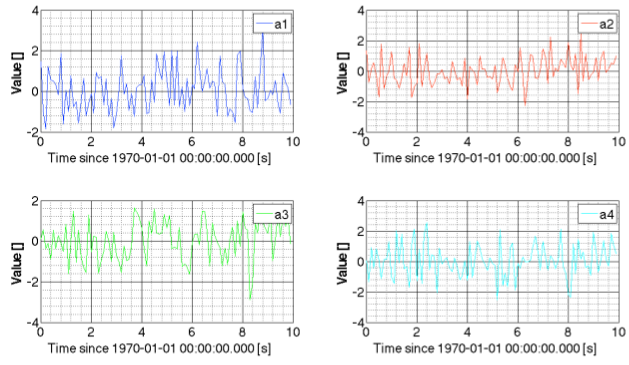

m1 = matrix([a1 a2; a3 a4])
m1.plot

Plot

Combining collection and matrix objects

By using a combination of collections and matrix objects, you can create more complex arrangements:

a1 = ao.randn(10,10);
a1.setName;
a2 = ao.randn(10,10);
a2.setName;
a3 = ao.randn(10,10);
a3.setName;
c1 = collection(a1)
c2 = collection(a2, a3);

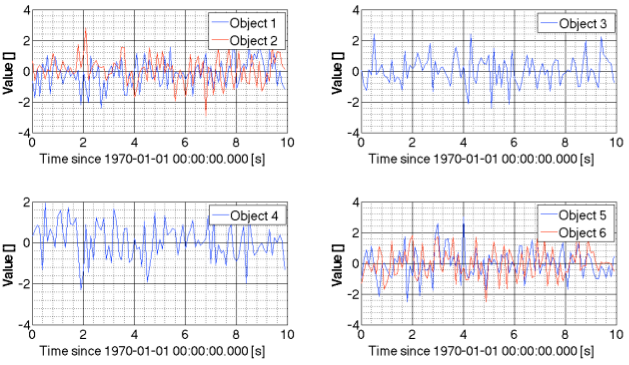

m = matrix([c1; c2])
m.plot

Plot

a1 = ao.randn(10,10);
a1.setName;
a2 = ao.randn(10,10);
a2.setName;
a3 = ao.randn(10,10);
a3.setName;
c1 = collection(a1)
c2 = collection(a2, a3);
m = matrix([c1; c2])
m.plot

Plot



©LTP Team
