LTP OMS Laser Assembly

LPF Technology

The LTP OMS Laser

LTP's Nd:YAG laser

LPF - Laser and Modulation Unit

LTP's Optical Metrology System

A stable light source provides the means of measuring the test mass position and attitude by detecting picometer path length changes.

The laser is a Nd:YAG laser emitting light at 1064 nm, with a power of approximately 40mW arriving at the end of an optical fibre. After verification on LISA Pathfinder, this laser will be available as the standard master laser for many future missions.

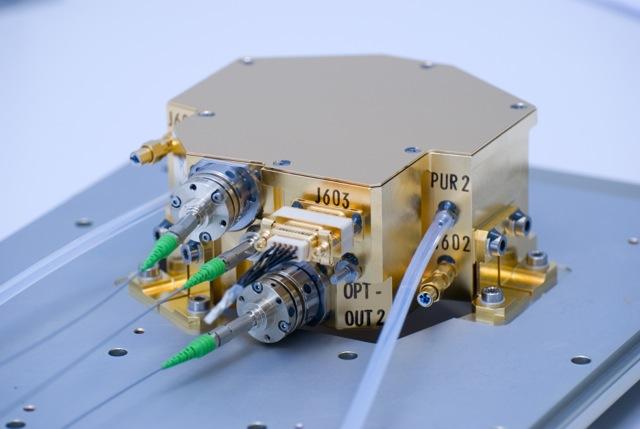

The LPF laser modulator unit. The input light from the laser is fibre coupled inThe laser is fibre-coupled to a modulation unit (shown left), which splits the beam into two parts. Each beam is frequency-shifted by an acousto-optical modulator, one by 80 MHz + 0.5kHz, the other by 80MHz - 0.5kHz. The difference between these two modulations (1kHz) is the heterodyne frequency at which the phase measurements are made. The two beams from the laser modulator are then injected via optical fibres onto the optical bench.

The flight laser unit is provided by TESAT GmbH & Co. KG, with the laser control electronics coming from Kayser Threde GmbH and the laser modulator from RUAG.
